Муфта рукава лесов штуцера трубы/струбцина EN74

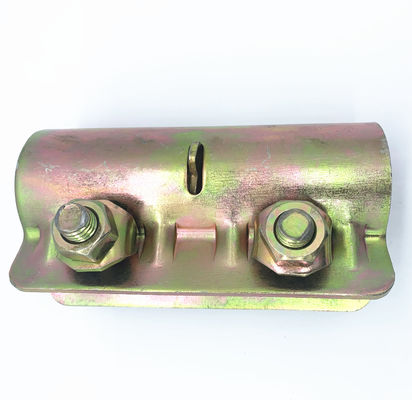

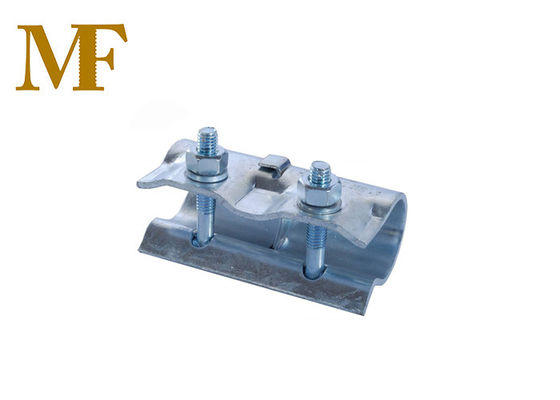

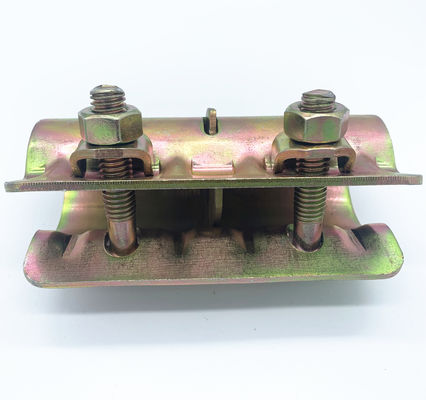

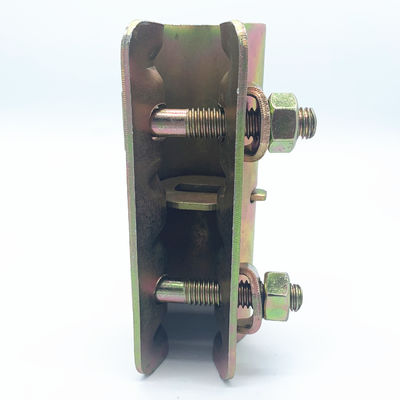

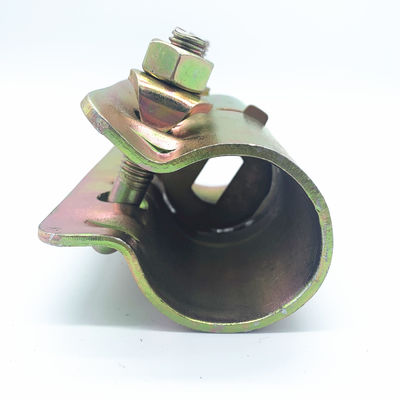

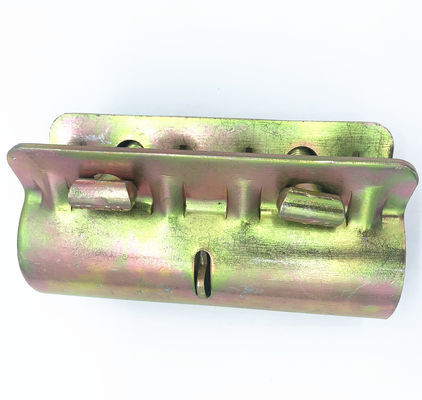

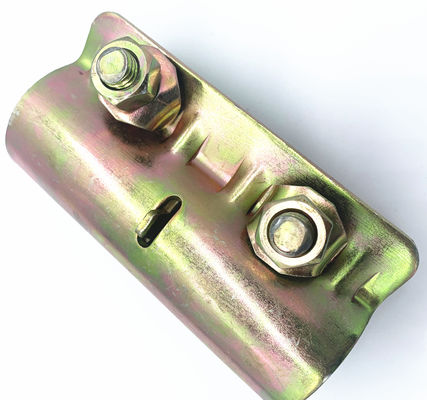

Pipe Fitting Scaffolding Sleeve Coupler/Clamp EN74

Scaffolding coupler is convenient installation and disassembly, flexible erection, strong and durable, which can used many times; The processing is simple and investment cost is low, relatively economic, so it is widely used in the construction of construction projects. In addition to scaffolding, it can also be used for erecting derricks, loading platforms and trestles.

♦ Scaffolding coupler is used to assemble tube-and coupler scaffolding system.

♦ Restoration of buildings.

♦ maintenance of particularly complex or extremely deteriorated architectural works.

Pipe Fitting Scaffolding Sleeve Coupler/Clamp EN74

Products	Swivel coupler	Fixed coupler	Fixed girder coupler	Putlog coupler	Scaffolding sleeve coupler	Board Retaining couple
Material	Q235 Carbon Steel	Q235 Carbon Steel	Q235 Carbon Steel	Q235 Carbon Steel	Q235 Carbon Steel	Q235 Carbon Steel
Size	48.3mm	48.3mm	48.3*48.3MM	48.3*48.3MM	48.3*48.3MM	48.3*48.3MM
Weight	1.05kg	1.05kg	1.5kg	0.62kg	0.98kg	0.6kg
Surface treatment	Electric galvanized	Electric galvanized	Electric galvanized,silver color	Electric galvanized,silver color	Electric galvanized,silver color	Electric galvanized,silver color
Craft	pressed	pressed	pressed	pressed	pressed	pressed
Application	construction scaffold	construction scaffold	connect the scaffolding tube	connect the scaffolding tube	connect the scaffolding tube	connect the scaffolding tube



Advantages of Pipe Fitting Scaffolding Sleeve Coupler/Clamp EN74:

1. Coupler for scaffolding steel tube 48.3mm.
2. Drop forged steel with good breaking strength.
3. Rough surface offers high skip-resistance.
4. T bolt and nut locking, quick to assemble and disassemble.
5. Zinc coated protect coupler clamp from corrosion for a long time.
6. Scaffolding pipe clamps has been tested according to BS1139.
7. Scaffolding tube couplers can connect steel pipes at any direction to form temporary structure.
